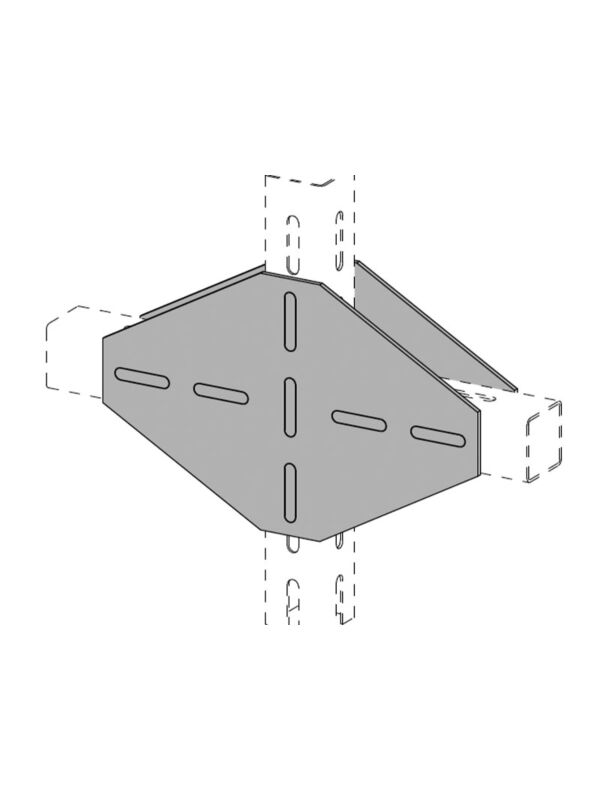

P5 & P0 Plates for NexSpan2™ F Series
P5 & P0 Plates for NexSpan2™ F Series
Allfasteners NexSpan2™ F Series is changing the game as modern contractors seek to simplify the design, fabrication, and installation of MEP equipment platforms and other steel structures.
NexSpan2™ F Series' pre-engineered, modular design paired with the patent pending NexSpan2™ T-Bolt and a complete range of connectors, provide an effortless framing system, eliminating the need for site welding and heavy cranes.
Availability:Out of stock
AF Part No.14NSF-P5.1A
Delivery & Return
Description
Benefits
- Similar loading properties to welded steel frames
- No on-site welding needed
- Reduced need for crane work and heavy lifting equipment
- Easy adjustment/leveling
- Well suited for installation in challenging environments
- Rapidly assemble with only an impact driver or torque wrench
- Compact packaging allows for simple transport
- Cost effective compared to welding structural steel
- T-Bolts feature a slot in the shank end, indicating correct installation
- Hot Dip Galvanized
- Made in the USA
Applications
- Data Centers Floor/Roof Mounted MEP Equipment Platforms
- Walkable Ceiling Structures
- Raised Floor Structures
- Chiller Piping Stands/Racks
- Multi-Level Trapeze Supports
- Transformer Platforms
- Hospitals Floor/Roof Mounted MEP Equipment Platforms
- HVAC Equipment Stands (VRF)
- Medical Gas Piping Stanchions
- Airports Floor/Roof Mounted MEP Equipment Platforms
- HVAC Equipment Stands (VRF)
- Chiller Piping Stanchions
- Water/Waste Treatment Plants Adjustable Pipe Stanchions
- Pump Stations
- Multi-Level Pipe Racks
- For Installing in Challenging Environments
T-Bolts
The NexSpan2™ F Series implements a unique M12 T-bolt made from 10.9 high grade steel up to 2,200 lbs load resistance. Paired with the NexSpan2's slot design, the T-bolt makes leveling frames and structures simple and fast - where traditional screw systems require precise alignment of holes.
Product List
| Sku | Item | NexSpan2™ F Series Size | Thickness | Availability | List Price | Pack |
|---|---|---|---|---|---|---|
| 14NSF-P53 | P53 Plate | 3" | 3/8" | Call for Availability | $105.66 | Pack: 1 |
| 14NSF-P54 | P54 Plate | 4" | 3/8" | Call for Availability | $110.33 | Pack: 1 |
| 14NSF-P03 | P03 Plate | 3" | 1/4" | Call for Availability | $75.32 | Pack: 1 |
| 14NSF-P04 | P04 Plate | 4" | 1/4" | Call for Availability | $78.43 | Pack: 1 |
