NexSpan2™ isn’t just a product line – it’s a shift in how systems are built
Allfasteners' NexSpan2™ is a pre-engineered system for overhead MEP applications where heavy load capacities are required.
When it comes to challenging environments such as airports, data centers, hospitals, and waste/water treatment plants, NexSpan2™ H Series is the intersection between high load capacity and simplicity.

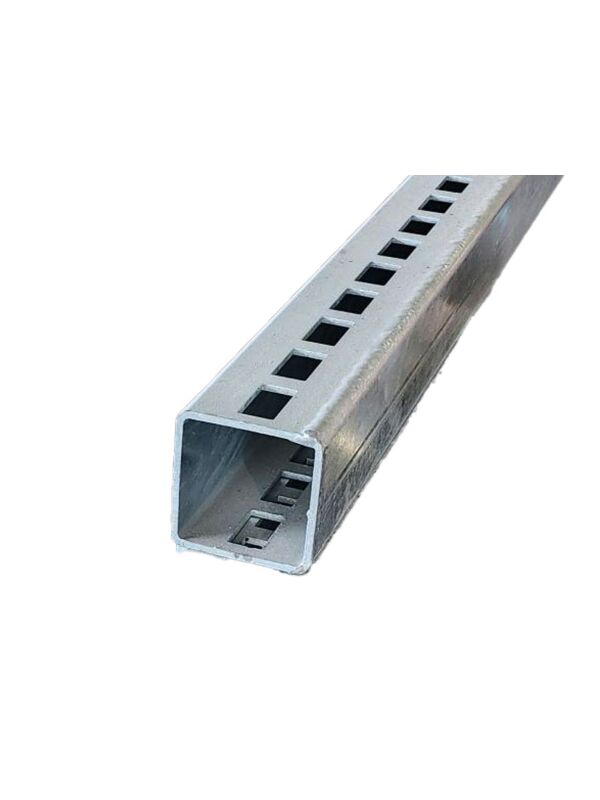

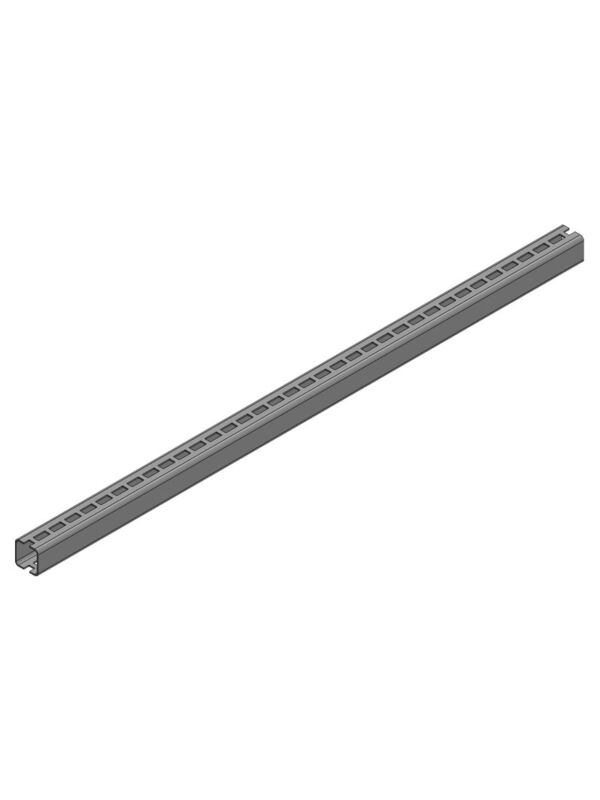

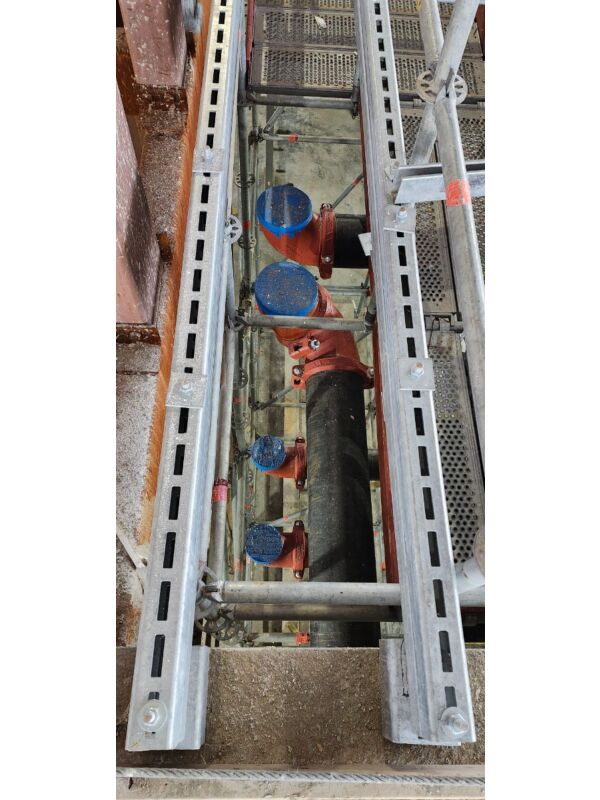

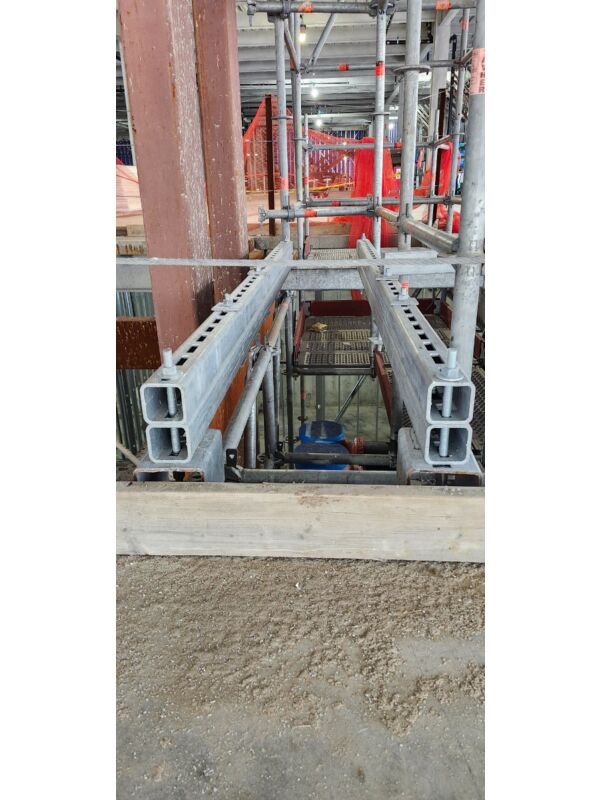

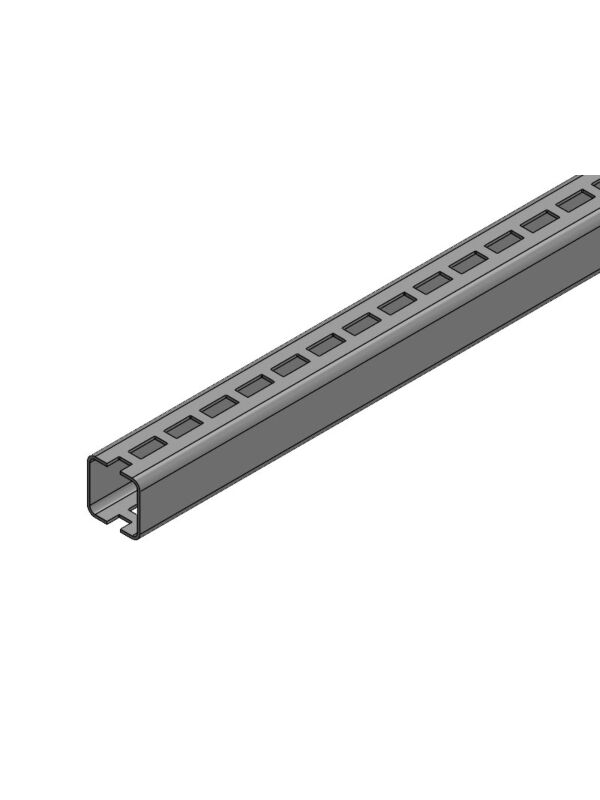

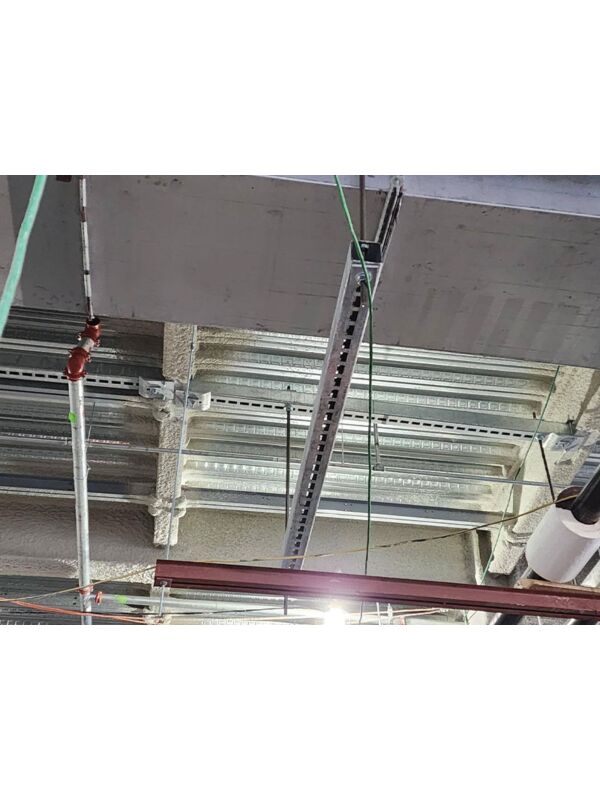

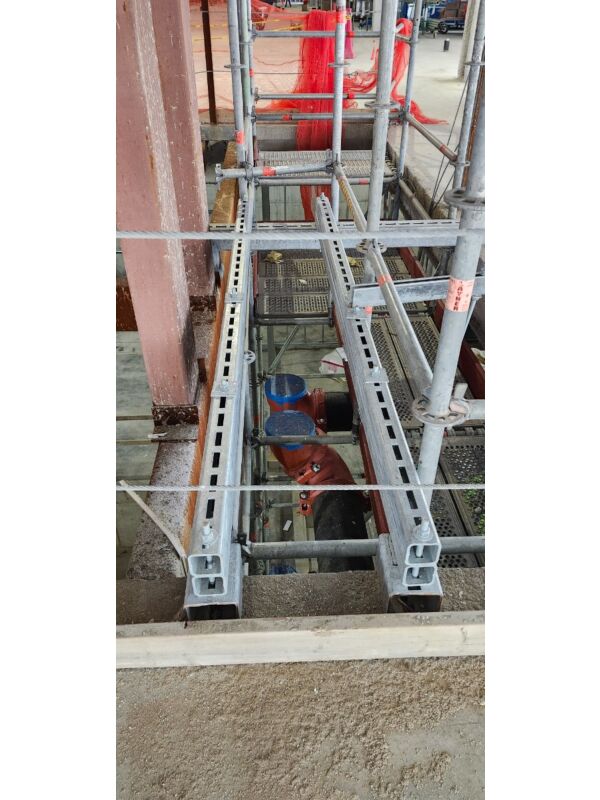

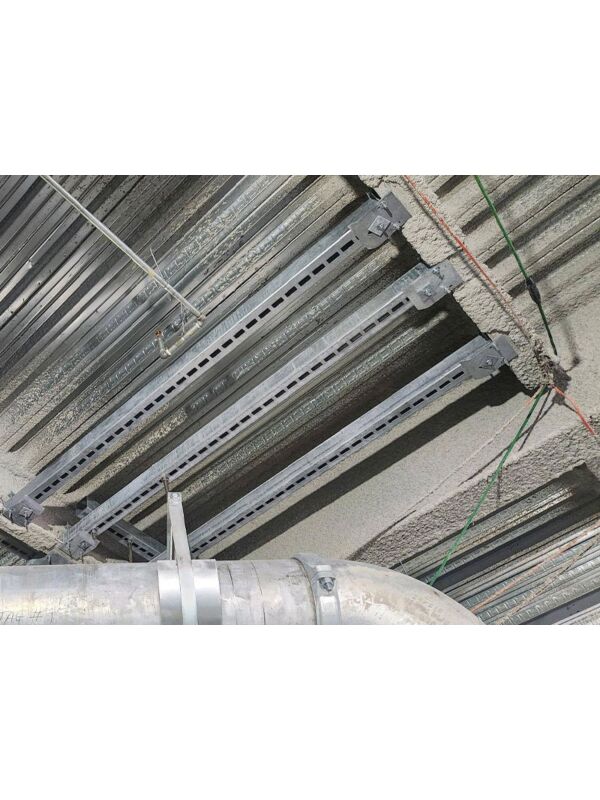

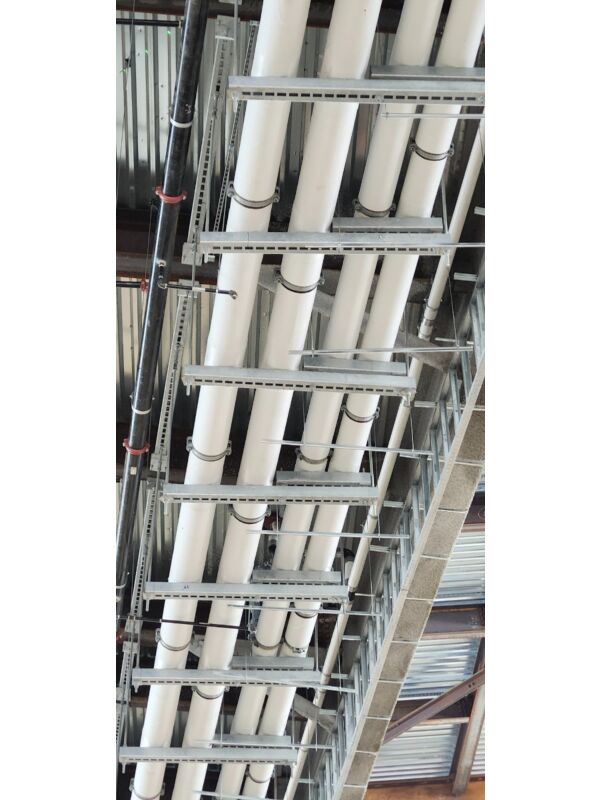

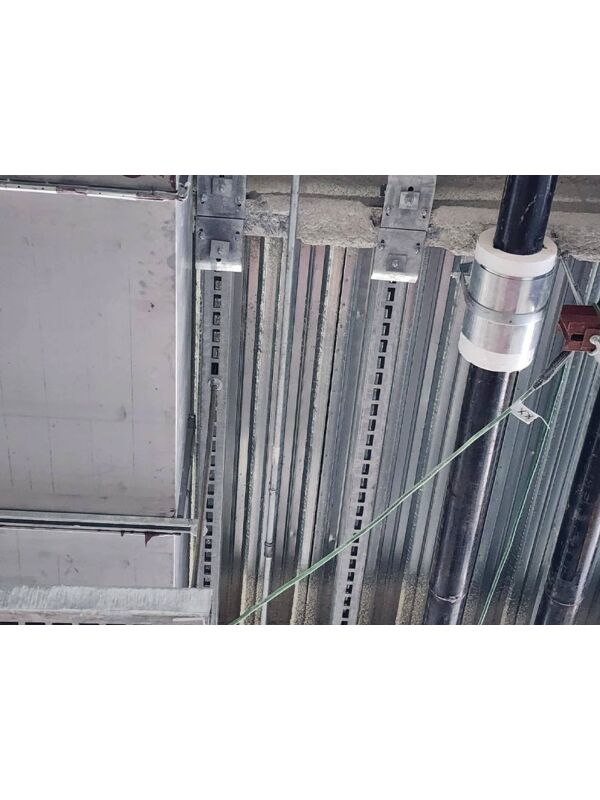

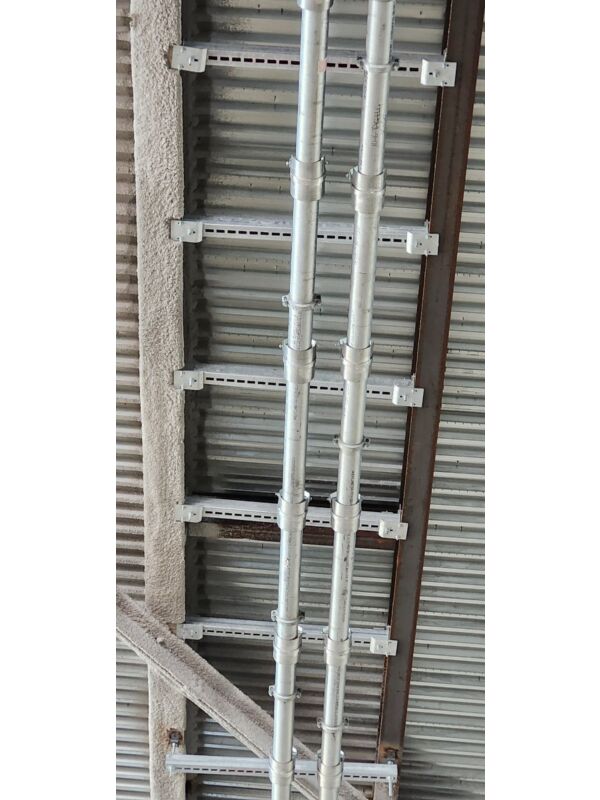

NexSpan2™ H Series consists of a slotted hollow structural tube design, universal beam clamps, and threaded rod, which ensure a quick, easy, and reliable support structure.
Revit Files for download under "Technical Specifications" tab. DWG Files available upon request.
Volume Discounts Available Based on Project Size
Patent Pending
Availability:In stock
AF Part No.14NSH.1A
Delivery & Return
Description
Key Benefits
- Similar loading properties to welded steel frames
- No on-site welding needed
- No need for heavy lifting equipment
- Suited for installation in challenging environments
- Assembled with impact driver or torque wrench only
- Easy to level
- Hot dip galvanized
- Engineered structural support design
- Compact packaging allows for simple transport in the back of a van
- Cost effective
- Made in the USA
- Made by AISC Certified Fabricator
Applications
- Airports
- Heavy mechanical piping
- Large HVAC ductwork
- Industrial heating & cooling units
- Data Centers
- Heavy chiller piping
- Large HVAC ductwork
- Industrial cooling equipment
- Hospitals
- Large HVAC ductwork
- Chemical process piping
- Industrial heating & cooling units
- Water/Waste Treatment Plants
- Pipe support stands & racks
- Supplemental Steel
- Overhead Trapeze Applications
Technical Data
Tube Size (in.) | t (in.) | tdes (in.) | Sloth Width (in.) | A (in2) | l (in4) | S (in3) |
| 3.00 | 0.250 | 0.233 | 0.688 | 1.800 | 2.369 | 1.579 |
| 4.00 | 0.250 | 0.233 | 1.250 | 2.205 | 5.506 | 2.753 |
| 5.00 | 0.250 | 0.233 | 1.250 | 3.135 | 12.463 | 4.985 |
Maximum Allowable Load (Lbs.)
| Span (in.) | HSS 3 x 3 x 1/4 | HSS 4 x 4 x 1/4 | HSS 5 x 5 x 1/4 |
| 120 | 600 | 1400 | 2700 |
Product List
| Sku | Size | Length | Slot Width | Availability | List Price | Pack |
|---|---|---|---|---|---|---|
| 14NSH310 | 3 x 3 x 1/4" NexSpan2™ H Series | 10' | 1-1/4" | In Stock | $376.85 | Pack: 1 |
| 14NSH320 | 3 x 3 x 1/4" NexSpan2™ H Series | 20' | 1-1/4" | In Stock | $753.70 | Pack: 1 |
| 14NSH410 | 4 x 4 x 1/4" NexSpan2™ H Series | 10' | 1-1/4" | In Stock | $484.50 | Pack: 1 |
| 14NSH420 | 4 x 4 x 1/4" NexSpan2™ H Series | 20' | 1-1/4" | In Stock | $969.00 | Pack: 1 |
| 14NSH510 | 5 x 5 x 1/4" NexSpan2™ H Series | 10' | 1-1/4" | In Stock | $608.30 | Pack: 1 |
| 14NSH520 | 5 x 5 x 1/4" NexSpan2™ H Series | 20' | 1-1/4" | In Stock | $1,216.60 | Pack: 1 |
| 14NSH8420 | 8 x 4 x 1/4" NexSpan2™ H Series | 20' | 1-1/4" | In Stock | $1,325.40 | Pack: 1 |
