HYDRAJAWS® Model M35+ Bridges
HYDRAJAWS® Model M35+ Bridges

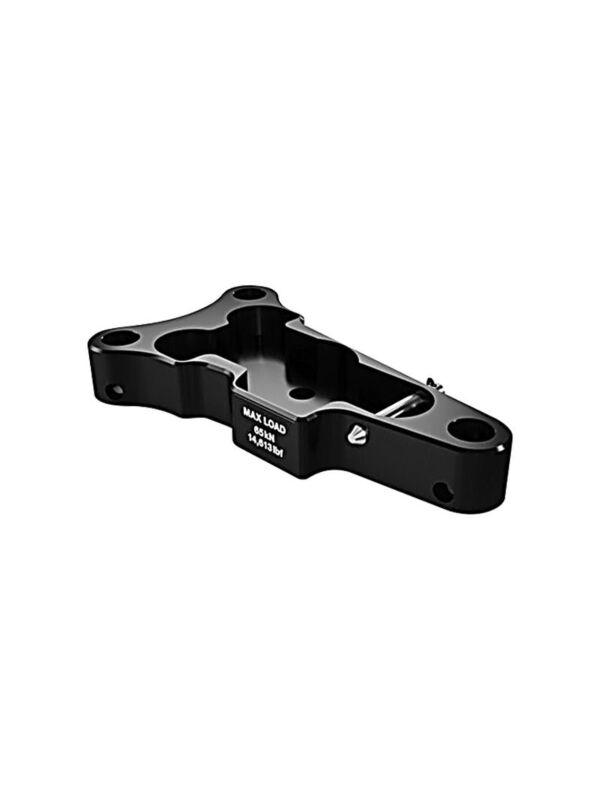

The M35+ medium bridge is rated to a 65kN SWL and extends the standard M35+ footprint to 210mm. The standard bridge and M35+ test cell integrated directly within this bridge.

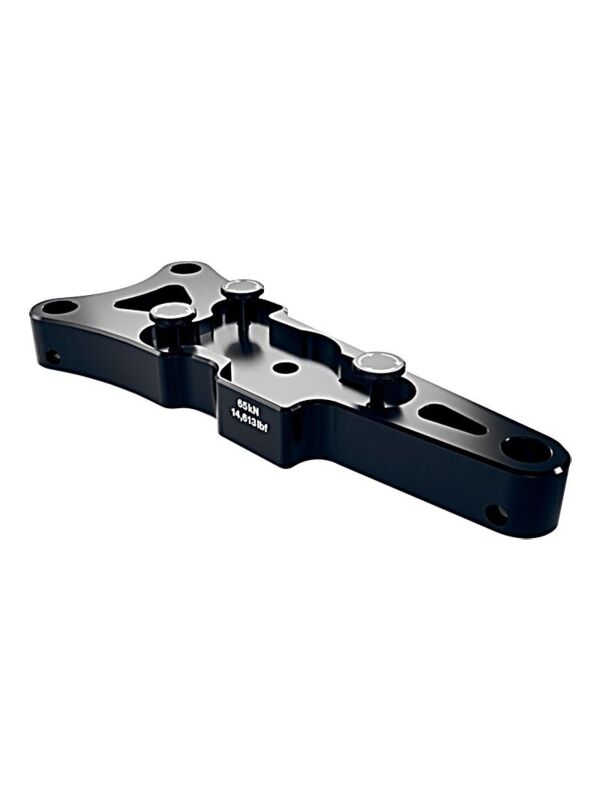

The M35+ large bridge is rated to a 65kN SWL and extends the standard M35+ footprint to 310mm. Both the large bridge and extension legs are included in the M35+ Pro Kit.
You can further increase the clearance with optional leg height extensions, these adapt to your existing telescopic legs.
Availability:In stock
AF Part No.9HJ141-096.1A
Delivery & Return
Description
Technical Information

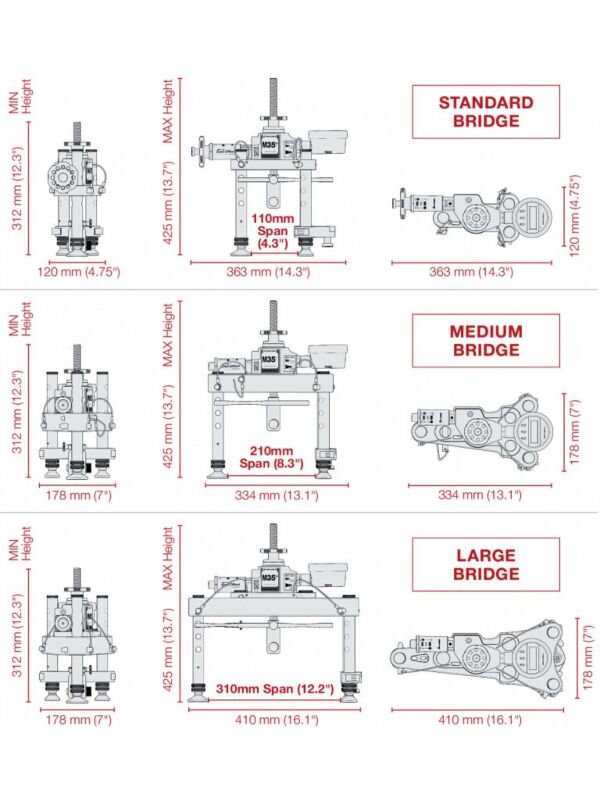

M35+ Medium Bridge
- Int. Span: 210mm (8.3")
- Load Capacity: 0-65kN
- Footprint: 334 x 178mm (13.1" x 7")
M35+ Large Bridge
- Int. Span: 310mm (12.2")
- Load Capacity: 0-65kN
- Footprint: 410 x 178mm (16.1" x 7")
Product List
| Sku | Item | Pull Tester | Availability | List Price | Pack |
|---|---|---|---|---|---|
| 9HJ141-096 | Model M35+ Medium Bridge 210mm Span (SWL 65kN) | Model M35+ | In Stock | $1,090.00 | Pack: 1 |
| 9HJ061-092 | Model M35+ Large Bridge 310mm Span (SWL 65kN) | Model M35+ | In Stock | $1,414.80 | Pack: 1 |
