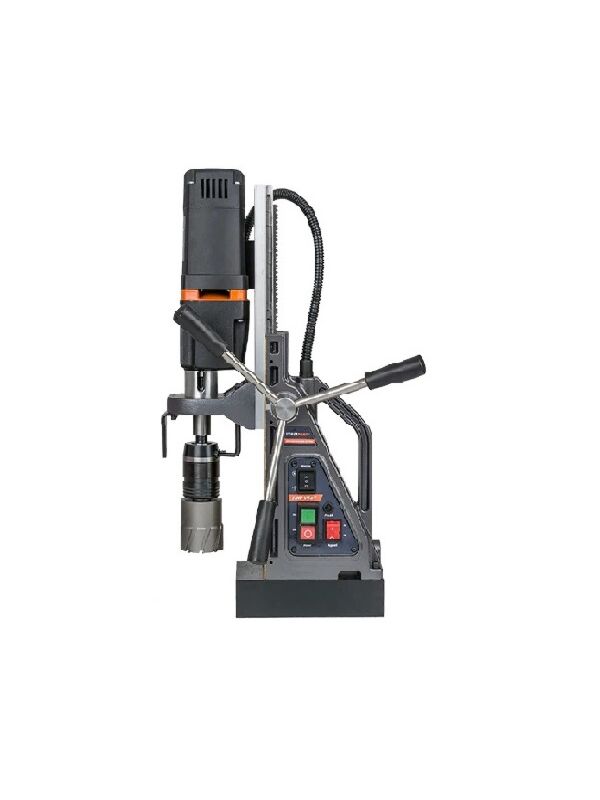

V60T Versadrive Magnetic Drill Pro Kit - 110V
V60T Versadrive Magnetic Drill Pro Kit - 110V
The V60T VersaDrive Mag Drill is the first UK Built portable drilling machine range designed for the 21st century. Designed to meet a need in the market for a high-performance, low maintenance, industrial quality portable drilling unit and to deliver constant performance in the most challenging drilling environments and fabrication conditions.
Combining light weight and portability with a high power all-day broaching capability up to 2 3/8" diameter with a powerful forward and reverse, variable speed motor that will tap holes up to 3/4" diameter. Fully rated for reaming, countersinking, and tapping. Advanced British electromagnets provide enhanced magnet hold for exceptional safety and stability.
Delivery & Return
Features & Benefits
- Supplied with handles, restraint strap, heavy duty metal sliding guard system, morse taper broaching arbor, VersaDrive adapter, site case and gravity fed coolant system.
Technical Data
CUTTER SIZE RANGE: 7/16" - 2 3/8" TCT
MAX CUTTER CAPACITY: 2 3/8" TCT
DEPTH OF CUT: 6"
TWIST DRILL CAPACITY: 3/4"
COUNTERSINKING: 1 1/2"
REAMING: ¾"
MAX TAP CAPACITY: ¾"
LENGTH: 12 1/2"
WIDTH (Inc Handles): 8 1/2"
HEIGHT (Min-Max): 15 - 24"
STROKE: 8 1/2"
WEIGHT: 39.5 lb
MAGNET (L X W): 8" x 4"
MAGNETIC ADHESION: 3860 lb
MOTOR POWER: 1150w
TOTAL POWER: 1270w
SPEED RPM (No Load): 100 - 250 / 180 - 450
SPINDLE: MT2
ARBOR: ¾” Weldon
COOLANT SYSTEM: Gravity Oil Fed
WARRANTY: 2 Year (When registered)
| Sku | Item | Voltage | Availability | List Price | Pack |
|---|---|---|---|---|---|
| 9V60T | V60T Versadrive Magnetic Drill Pro Kit 110v | 110 | Call for Availability | $1,885.00 | Pack: 1 |
