12" HSS Tube Embeds - 45 Degree Studs
12" HSS Tube Embeds - 45 Degree Studs
Allfasteners HSS Tube Embeds (HTE) are designed to provide a solution for the curtain wall industry by representing a significant advancement in structural support systems for large scale glass facades.
Our design is to be used with thread-forming screws - increasing the possibility of achieving higher loads and providing more flexibility on construction tolerances.
HTE combines the strength and durability of high-strength steel with the convenience of embedded studs or rebar tails, making it the ideal choice for architects, engineers and builders in the curtain wall sector.
Check out the HTE Design Aid FREE to download here.
Delivery & Return
A robust and reliable solution for attaching curtain wall systems to underlying structures, Allfasteners HTE is readily available through Allfasteners’ reliable sourcing and manufacturing abilities.
Our commitment to quality and innovation is evident once more with the introduction of the HSS Tube Embeds.
Key Benefits
- Enhanced Structural Support: Designed to provide strong and reliable connections between curtain wall and the building’s structural elements - ensuring the system can withstand wind loads, seismic forces and other environmental stresses.
- Versatile: Can be used in top, bottom and edge of slab construction.
- Design Flexibility: Multiple HSS lengths and multiple configurations of studs and rebar, providing a solution for any project.
- Field Flexibility: Construction strip tolerance marking for more precise connection placement.
- Cost Efficient: No need for T-bolts.
- Domestic: Made in the USA.
| Sku | HSS Tube Size | Stud Count | Stud Size | Availability | List Price | Pack |
|---|---|---|---|---|---|---|
| 14AFHTE1223-45 | 12" HSS Tube Embed | 2 | 3" 45 Degree Studs | Call for Availability | $0.00 | Pack: 1 |
| 14AFHTE1233-45 | 12" HSS Tube Embed | 3 | 3" 45 Degree Studs | Call for Availability | $0.00 | Pack: 1 |

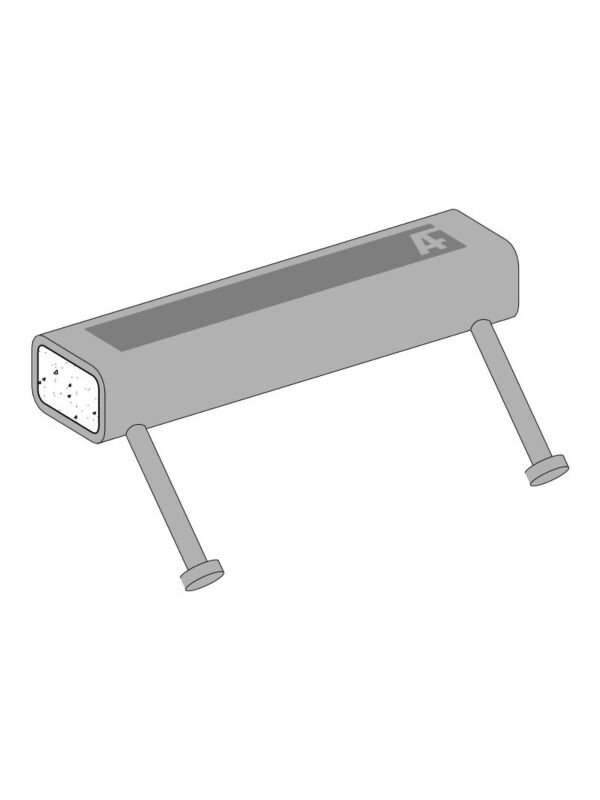

| 14AFHTE1224-45 | 12" HSS Tube Embed | 2 | 4" 45 Degree Studs | Call for Availability | $0.00 | Pack: 1 |

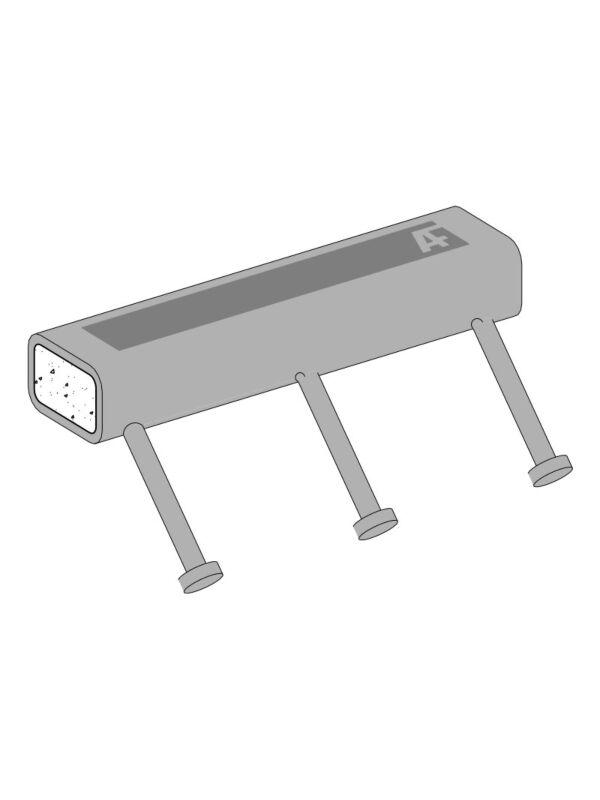

| 14AFHTE1234-45 | 12" HSS Tube Embed | 3 | 4" 45 Degree Studs | Call for Availability | $0.00 | Pack: 1 |
| 14AFHTE1225-45 | 12" HSS Tube Embed | 2 | 5" 45 Degree Studs | Call for Availability | $0.00 | Pack: 1 |
| 14AFHTE1235-45 | 12" HSS Tube Embed | 3 | 5" 45 Degree Studs | Call for Availability | $0.00 | Pack: 1 |
