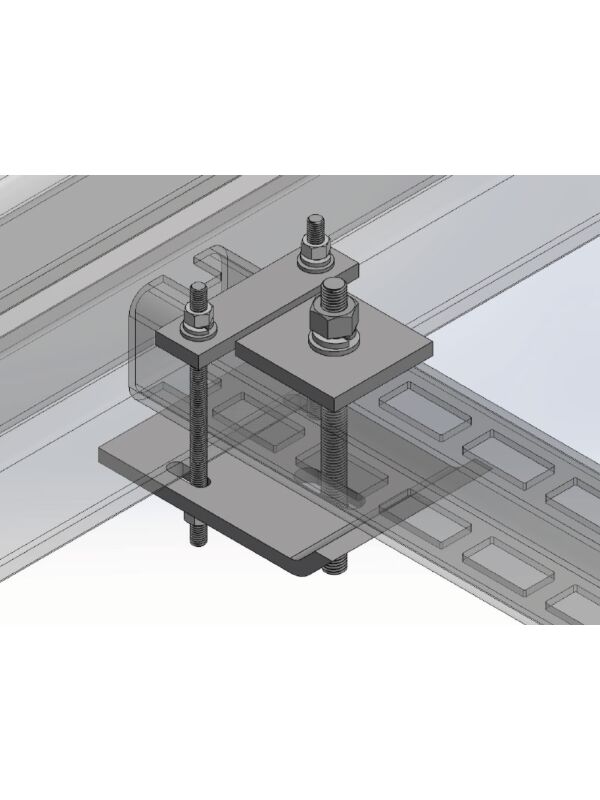

4" NexSpan2™ H Series Universal Clamp, HDG
Allfasteners NexSpan2™ Universal Clamps are designed to be used with 14NSU NexSpan2™ H Series - ideal for overhead hanging applications in mechanical projects, providing secure and reliable support for heavy loads. Ease of installation and long-lasting performance in demanding environments is what you get with NexSpan2™.
NexSpan2™ is perfect for supporting HVAC systems, piping, and other mechanical equipment. NexSpan2™ utilizes universal clamps to securely attach to the ceiling, ensuring a stable and robust connection.
Patent Pending
Order your items
Order your items 24/7, 365 days a year from our market leading ecommerce site. Need help? Ask one of our knowledgeable representatives a question today!
Need help?
Nationwide:888-859-6060
sales@allfasteners.com
AF Part No. | Size | Use With NexSpan2™ | Price | Volume Discounts | Stock Status | | |||
---|---|---|---|---|---|---|---|---|---|
14NSHC4 | 4" NexSpan2™ Universal Clamp | 4" x 4" x 1/4" NexSpan2™ H Series | $66.49 / Piece ($66.49/Unit) | Buy 1 Piece $66.49 $66.49 each Buy 10 Pieces $64.55 $64.55 each Buy 50 Pieces $62.07 $62.07 each | Call for availability | 1 |
Key Benefits
- Similar loading properties to welded steel frames.
- No on-site welding needed.
- No need for heavy lifting equipment.
- Easy to level.
- Suited for installation in challenging environments.
- Assembled with impact driver or torque wrench only.
- Compact packaging allows for simple transport in the back of a van.
- Made to AISC standards
- Capacities by P.E. Structural Engineer
- Cost effective
- Made in the USA.
Applications
- For installing in challenging environments
- Data Centers
- Plant Rooms
- Waste Transfer Stations
- Pipework Support Frames
- Heavy Duty Roof Frames
Technical Data
Tube Size (in.) | t (in.) | tdes (in.) | Sloth Width (in.) | A (in2) | l (in4) | S (in3) |
3.00 | 0.250 | 0.233 | 0.688 | 1.800 | 2.369 | 1.579 |
4.00 | 0.250 | 0.233 | 1.250 | 2.205 | 5.506 | 2.753 |
5.00 | 0.250 | 0.233 | 1.250 | 3.135 | 12.463 | 4.985 |
Maximum Allowable Load (Lbs)
Span (in.) | HSS 3 x 3 x 1/4 | HSS 4 x 4 x 1/4 | HSS 5 x 5 x 1/4 |
120 | 600 | 1400 | 2700 |
