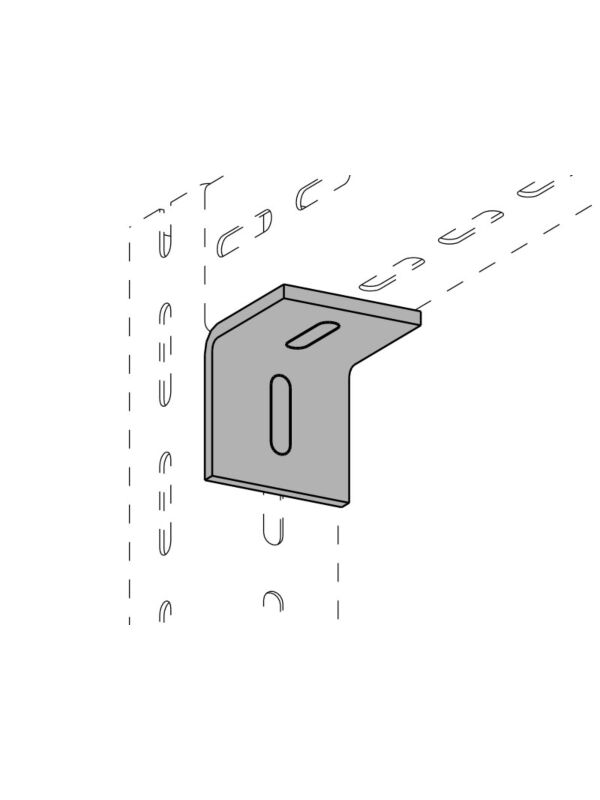

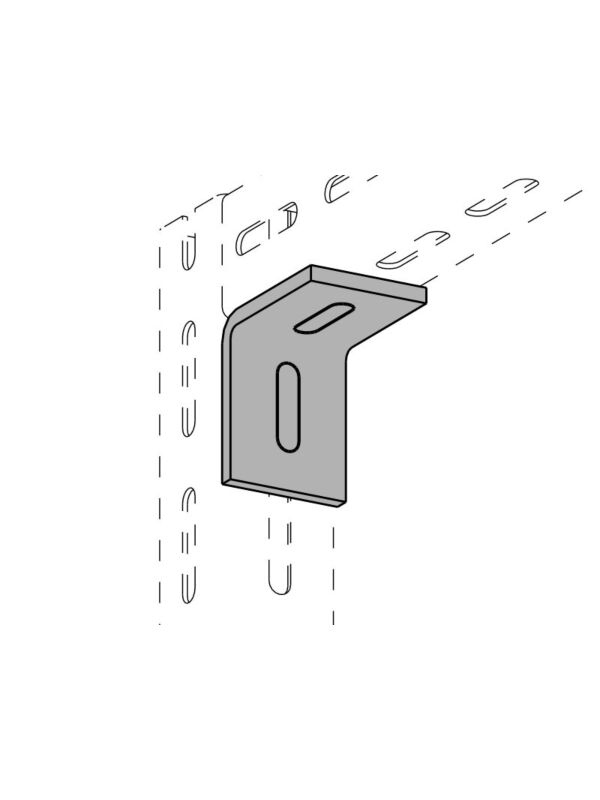

A9 Angles for NexSpan2™ F Series

Benefits

• Similar loading properties to welded steel frames
• No on-site welding needed
• Reduced need for crane work and heavy lifting equipment
• Easy adjustment/leveling
• Well suited for installation in challenging environments
• Rapidly assemble with only an impact driver or torque wrench
• Compact packaging allows for simple transport
• Cost effective compared to welding structural steel
• T-Bolts feature a slot in the shank end, indicating correct installation
• Hot Dip Galvanized
• Made in the USA

Applications

1. Data Centers Floor/Roof Mounted MEP Equipment Platforms
   1. Walkable Ceiling Structures
   2. Raised Floor Structures
   3. Chiller Piping Stands/Racks
   4. Multi-Level Trapeze Supports
   5. Transformer Platforms
2. Hospitals Floor/Roof Mounted MEP Equipment Platforms
   1. HVAC Equipment Stands (VRF)
   2. Medical Gas Piping Stanchions
3. Airports Floor/Roof Mounted MEP Equipment Platforms
   1. HVAC Equipment Stands (VRF)
   2. Chiller Piping Stanchions
4. Water/Waste Treatment Plants Adjustable Pipe Stanchions
   1. Pump Stations
   2. Multi-Level Pipe Racks
5. For Installing in Challenging Environments

T-Bolts

The NexSpan2™ F Series implements a unique M12 T-bolt made from 10.9 high grade steel up to 2,200 lbs load resistance. Paired with the NexSpan2's slot design, the T-bolt makes leveling frames and structures simple and fast - where traditional screw systems require precise alignment of holes.
