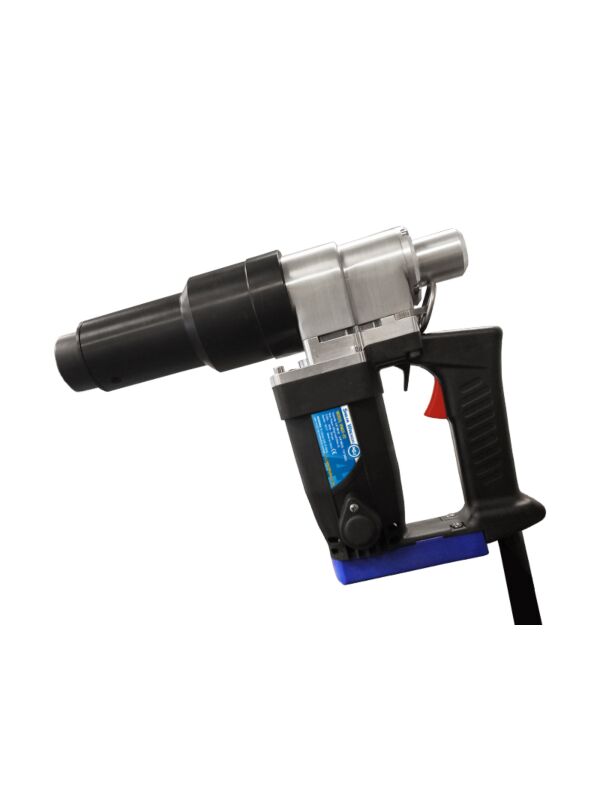

NG2® M20 3/4" Shear Wrench
NG2® M20 3/4" Shear Wrench
Tightens NexGen2™ bolts with up to 2-1/4" of thread protruding past nut. Delivers 672ft.lbs. of max torque for the most demanding applications. Handy tip lever for ejecting sheared tips. Weighs 17.2lbs. Standard 110v grounded plug. Also works with standard 3/4" F3125 tension control bolts.
Availability:In stock
AF Part No.NG222
Delivery & Return
Description
Why Shear Wrench?
Key Benefits
- Compact and lightweight yet powerful
- Handy tip lever for ejecting sheared tips
- Rubber bumper for tool body protection
- Delivers 672ft.lbs of max torque for the most demanding applications
- Tighten bolts with up to 2-1/4” of thread protruding past nut
- Weighs only 17.2 lbs.
- Heavy duty case
- Rental and purchase options available.
Specifications
- Capacities (bolt drive): M20 3/4”
- No load speed of 20 rpm
- Maximum torque (ft.lbs./N·m) of 672 ft.lbs.
- Overall length of 9-3/16”
- Shipping weight of only 22 lbs.
Extended Socket
- Tighten bolts with up to 4-1/4” of thread protruding past nut
- Use with AF Shear Wrench 9NG2-22
Ask About Our Shear Wrench
Have questions about these products and their applications? Feel free to get in touch with us. For the best quality shear wrench see Allfasteners, America’s place for All Things Fastenings.
Product List
| Sku | Item | Compatible with | Availability | List Price | Pack |
|---|---|---|---|---|---|
| 9NG2-22 | M20 NexGen2 Extended Range Shear Wrench | M20 NexGen2™ Oneside® Bolt Assembly | In Stock | $2,845.55 | Pack: 1 |
