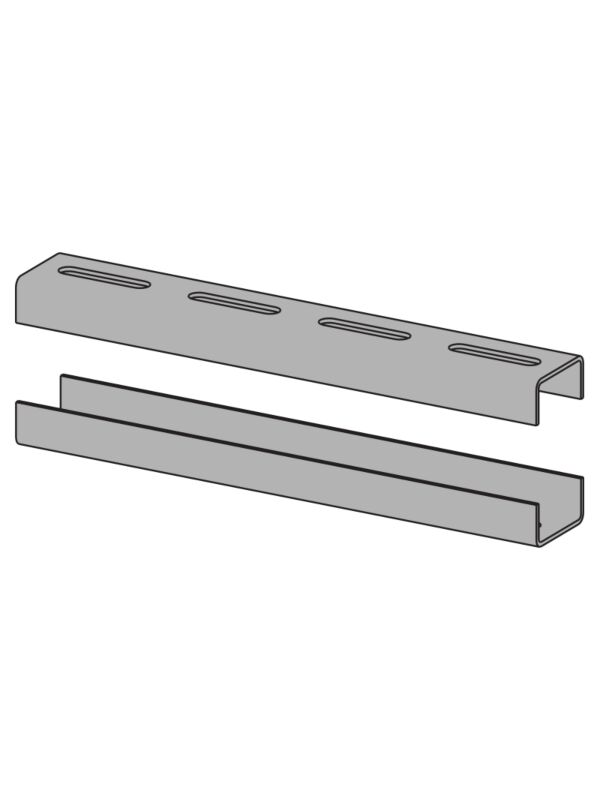

S1 Splice Connectors for NexSpan2™ F Series
S1 Splice Connectors for NexSpan2™ F Series
NexSpan2™ isn’t just a product line – it’s a shift in how systems are built
Allfasteners NexSpan2™ F Series is changing the game as modern contractors seek to simplify the design, fabrication, and installation of MEP equipment platforms and other steel structures.
NexSpan2™ F Series' pre-engineered, modular design paired with the patent pending NexSpan2™ T-Bolt and a complete range of connectors, provide an effortless framing system, eliminating the need for site welding and heavy cranes.
Sold by the Piece. Two (2) Connectors Required for Splice
Volume Discounts Available Based on Project Size
Availability:In stock
AF Part No.14NSF-S1.1A
Delivery & Return
Description
Benefits
- Similar loading properties to welded steel frames
- No on-site welding needed
- Reduced need for crane work and heavy lifting equipment
- Easy adjustment/leveling
- Well suited for installation in challenging environments
- Rapidly assemble with only an impact driver or torque wrench
- Compact packaging allows for simple transport
- Cost effective compared to welding structural steel
- T-Bolts feature a slot in the shank end, indicating correct installation
- Hot Dip Galvanized
- Made in the USA
Applications
- Data Centers Floor/Roof Mounted MEP Equipment Platforms
- Walkable Ceiling Structures
- Raised Floor Structures
- Chiller Piping Stands/Racks
- Multi-Level Trapeze Supports
- Transformer Platforms
- Hospitals Floor/Roof Mounted MEP Equipment Platforms
- HVAC Equipment Stands (VRF)
- Medical Gas Piping Stanchions
- Airports Floor/Roof Mounted MEP Equipment Platforms
- HVAC Equipment Stands (VRF)
- Chiller Piping Stanchions
- Water/Waste Treatment Plants Adjustable Pipe Stanchions
- Pump Stations
- Multi-Level Pipe Racks
- For Installing in Challenging Environments
T-Bolts
The NexSpan2™ F Series implements a unique M12 T-bolt made from 10.9 high grade steel up to 2,200 lbs load resistance. Paired with the NexSpan2's slot design, the T-bolt makes leveling frames and structures simple and fast - where traditional screw systems require precise alignment of holes.
Product List
| Sku | Item | NexSpan2™ F Series Size | Availability | List Price | Pack |
|---|---|---|---|---|---|
| 14NSF-S13 | S13 Splice Connector | 3" | In Stock | $34.95 | Pack: 1 |
| 14NSF-S14 | S14 Splice Connector | 4" | In Stock | $39.40 | Pack: 1 |
